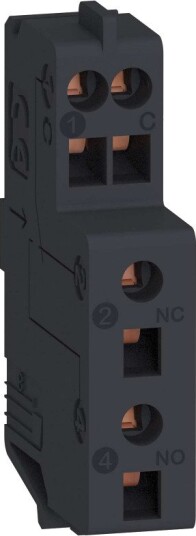

Schneider Electric GV4AE11 Hjelpekontakt

TeSys GV4 stands out by being both compact and high performance. The device is intended for mounting on DIN rail and is only 81 millimeters wide. Nevertheless, the rated current rises up to 115A and has three breaking levels of 25, 50 or 100 kA.In addition, TeSys GV4 offers both operating classification 10 (normal start) and 20 (heavy start). This makes it the obvious choice for a multitude of different applications, regardless of the specifics of the individual application.TeSys GV4 is also perfect for machines that need to be exported to customers outside of Denmark. It is therefore certified according to all relevant international standards (UL, JIS, ATAX, CCC, EAC and EU) and therefore approved for use worldwide, including North America and Asia.The motor switch can be used both as a main circuit breaker in a control panel and as an individual protection in front of motors. The smart connection with EverLink terminals ensures that the TeSys GV4 cables are always properly tensioned, even with vibration or motion in the cables.Three types GV4L: Magnetic switch GV4P: Thermomagnetic switch with overload setting. GV4PEM: Thermomagnetic switch with overload setting and advanced protection and alarm Many options - wide application Only one physical size: 81 mm wide, mounted on DIN rail Rated current up to 115A, 3P (choose 2, 3, 5, 7, 12, 25, 50, 80 or 115A) up to 55kW (400VAC) Three levels of break power: 25, 50 or 100 kA (415V) Dual operation classification: 10 (normal start) and 20 (heavy start)
